FQ-700 PAPER ROLL SLITTING MACHINE
PAPER SLITTING AND REWINDING MACHINE
The paper slitting and rewinding machine is the equipment that cuts a large roll of paper, film, non-woven fabric, aluminum foil, mica tape, and other thin materials into different widths of small volumes before printing. It is commonly used in the paper manufacturing, printing, and packaging industries.
1. Enhance efficiency with dual-winding shafts.
2. Ensure a secure grip with an air-expanding shaft, preventing slippage.
3. Achieve controllable tension and balanced output torque through a magnetic powder brake actuator.
4. Utilize a high-speed waste material blowing fan.
5. Swiftly secure the upper knife shaft with a fast-closing device.
The unit's manual offset feature now eliminates tension due to Bohou or core out-of-roundness and wrinkles.
Unwind tension and balance tension fluctuations in the output torque of the highly linear magnetic particle brake are minimized.

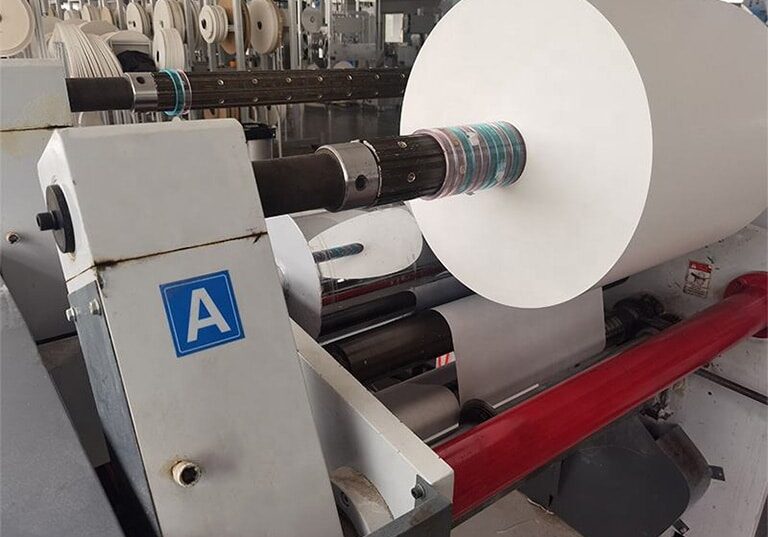

Unwinding specifications: maximum width of 700mm, phi diameter 1100mm
Paper tube clamping method: air shaft clamping
Specifications: 3 in 1 root of the air shaft, 1 piece
A pneumatic gun, 1 piece
Tension control: closed-loop tension control
The output control: is 6N.M., 1 piece
magnetic brakes, 1 piece
Correction is performed by tracking the substrate with the photoelectric eye correction controller. For a given signal, the motor drives ball screw execution.
Photoelectric eye, 1 piece
Linear guide rail, 4 pieces
A corrective institution, 1 piece
The photoelectric eye fine-tuning 1 set
THE PAPER SLITTING
The machine uses a carbide precision disc knife (slitting relatively thick aluminum foil, paper, and other materials) or straight knife cutting (slitting general plastic film), neat incision, long life, cutting up and down knife shaft width adjustment processing, between the upper and lower blade shafts, and gear speed matching. When the handwheel is turned under the knife, the knife continuously rotates automatically.
Tool axis: under the knife shaft, each one
2 locking device: a fast-by-knife device able to lock on the knife shaft to avoid slitting the knife up and down or moving
due to quality problems.
Specifications: a rocker's arm
A locking shaft With gear A worm gear
3. Row waste: by blowing high-pressure air feed tube diversion, the scrap material is excluded.
Specifications: 1 fan, 1 duct
4. main wall: steel wall panels, effective shock absorption, enabling high-speed and stable operation.
Specifications: 30MM
5. Guide rollers: chrome-plated, polished
Specifications: φ80 × 750mm certain

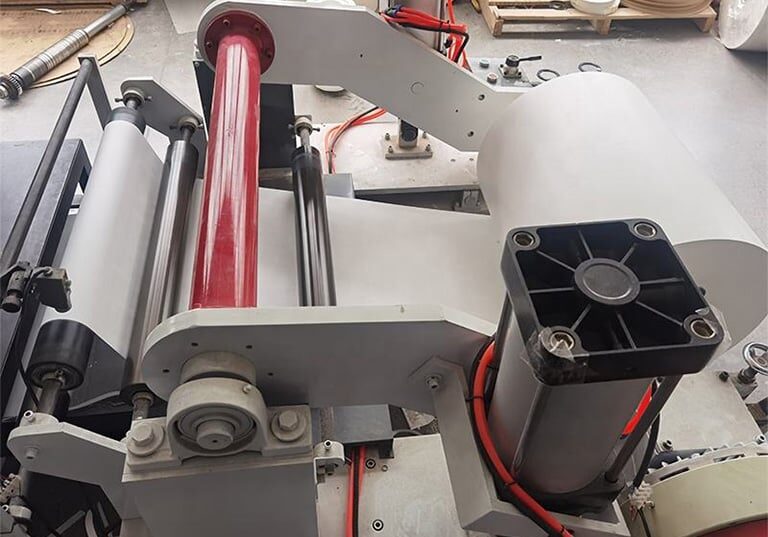

The machine uses a left-right biaxial winding with pressure arm balance for internal and external pressure. The transmission uses two independent servo motors that drive uniaxial tension, which is adjustable.
Winding Specifications: width up to 700mm, diameter 600mm
Paper tube clamping means: air shaft clamp (according to customer material specifications)
Specifications: 3in 2 root of the air shaft
Rewinding pressure: differential pressure pneumatic compression; the pressure can be adjusted by the pneumatic pressure regulator
Specifications: Pressure arm 2
Cylinder 2
Tension control: servo motor, constant torque output
Specifications: motor controller
Winding execution: servo motor 2 (specifications: 5.5kw) Single-head swing arm unloading (or general discharge)

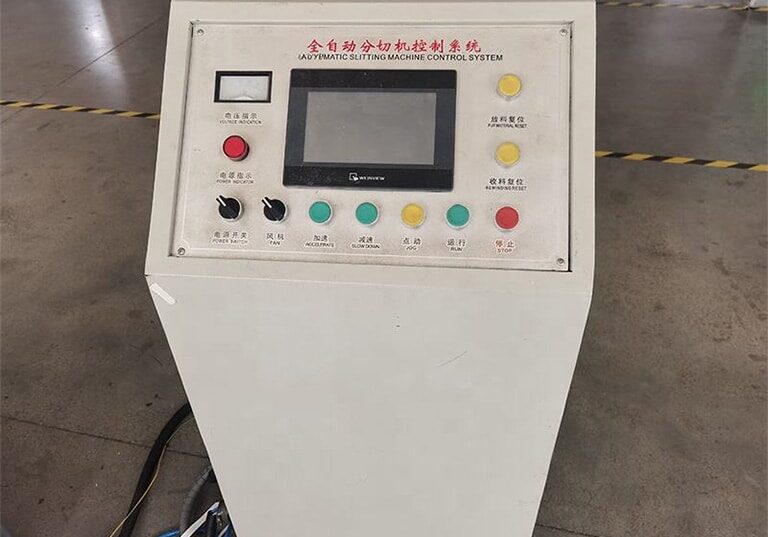

Drive mode: General moving control of PLC
Specification: 5.5KW servo motor
TECHNICAL DATA
|
Brand Name
|
YINKO
|
|
Slitting capability
|
20g-120g/m2
|
|
Max-diameter mother roll
|
1000mm
|
|
Max-diameter finish roll
|
600mm
|
|
Max-width mother roll
|
700mm
|
|
Winding shaft diameter
|
76 ሚሜ
|
|
Unwinding shaft diameter
|
76 ሚሜ
|
|
Speed
|
10-150mm/min
|
|
Main motor
|
7.5Kw
|
|
Inverter power
|
11Kw
|
|
Voltage
|
380V 50HZ 3P
|
|
ክብደት
|
2500kg
|

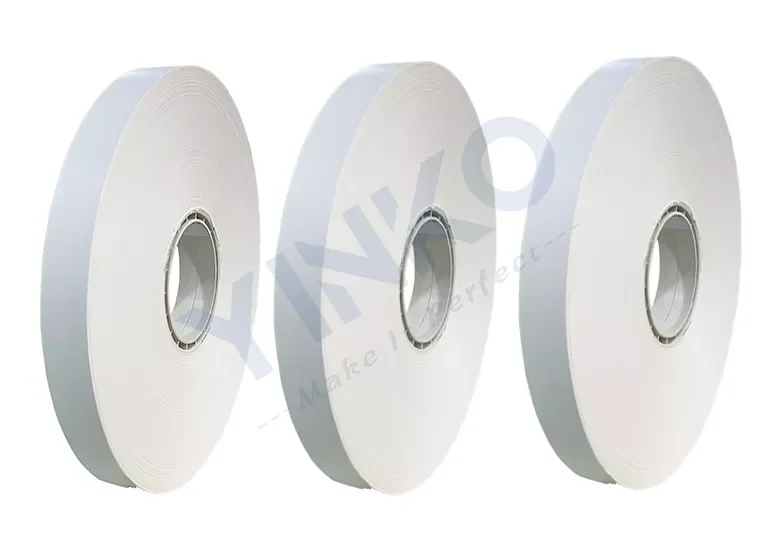

FINISHED PAPER ROLL
The Paper Roll Min. Width 13.5mm, Rewind Paper Roll Max Diameter 550mm, Unwind Paper Roll Width 450mm, Unwind Paper Roll Max Diameter 880mm
If you need finished paper roll,please send an email to us
Winding/spiraling different layers paper strip into paper tube, Drying by heating Area,Single knife cutting system, by servo tracking, cut paper tube into small piece of paper drinking straws.

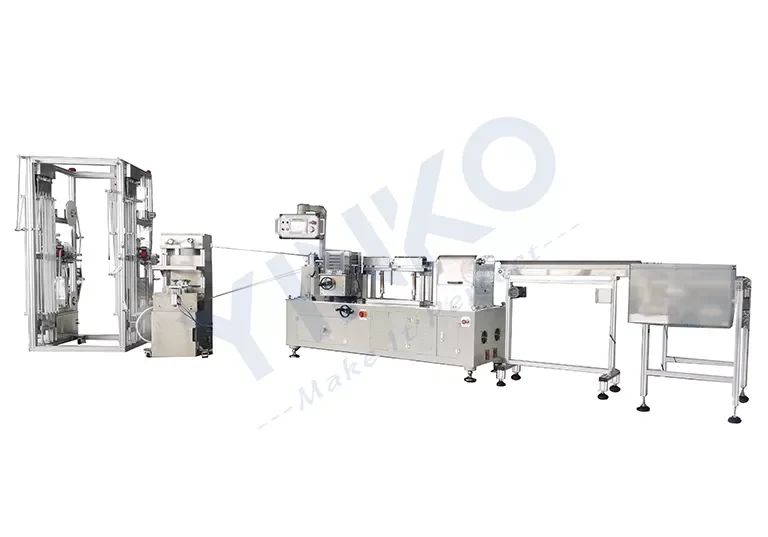

U SHAPED PAPER STRAW PRODUCTION LINE
ተጣጣፊ ገለባ መታጠፊያ ማሽን

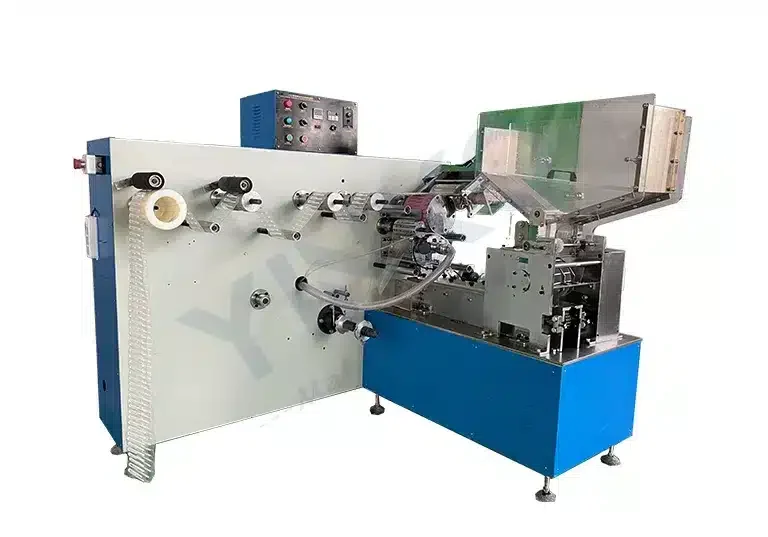

BENDING STRAIGHT STRAW INTO FLEXIBLE SHAPE TO MEET DIFFERENT NEEDS

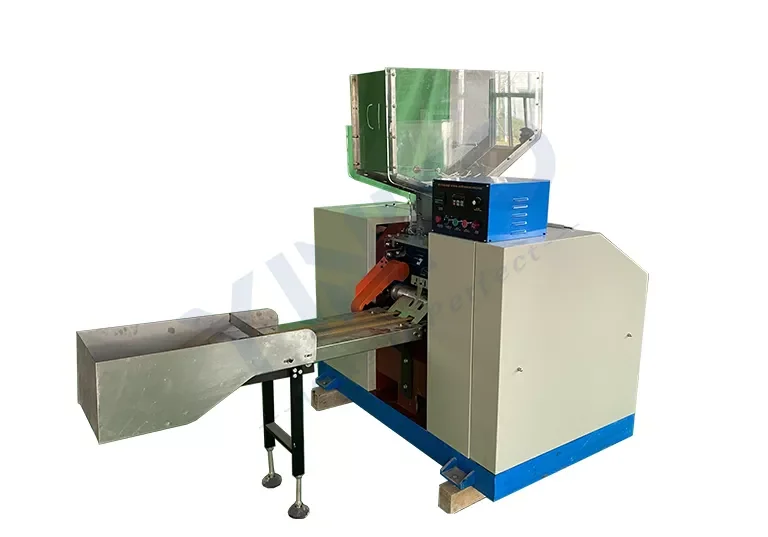

U-SHAPED STRAW PACKING MACHINE
BENDING FLEXIBLE STRAW INTO U SHAPE AND PACKING IN A ROW
